...@@ -23,6 +23,49 @@ A synthesizer with two oscillators in a mutual relationship with each other. ...@@ -23,6 +23,49 @@ A synthesizer with two oscillators in a mutual relationship with each other.

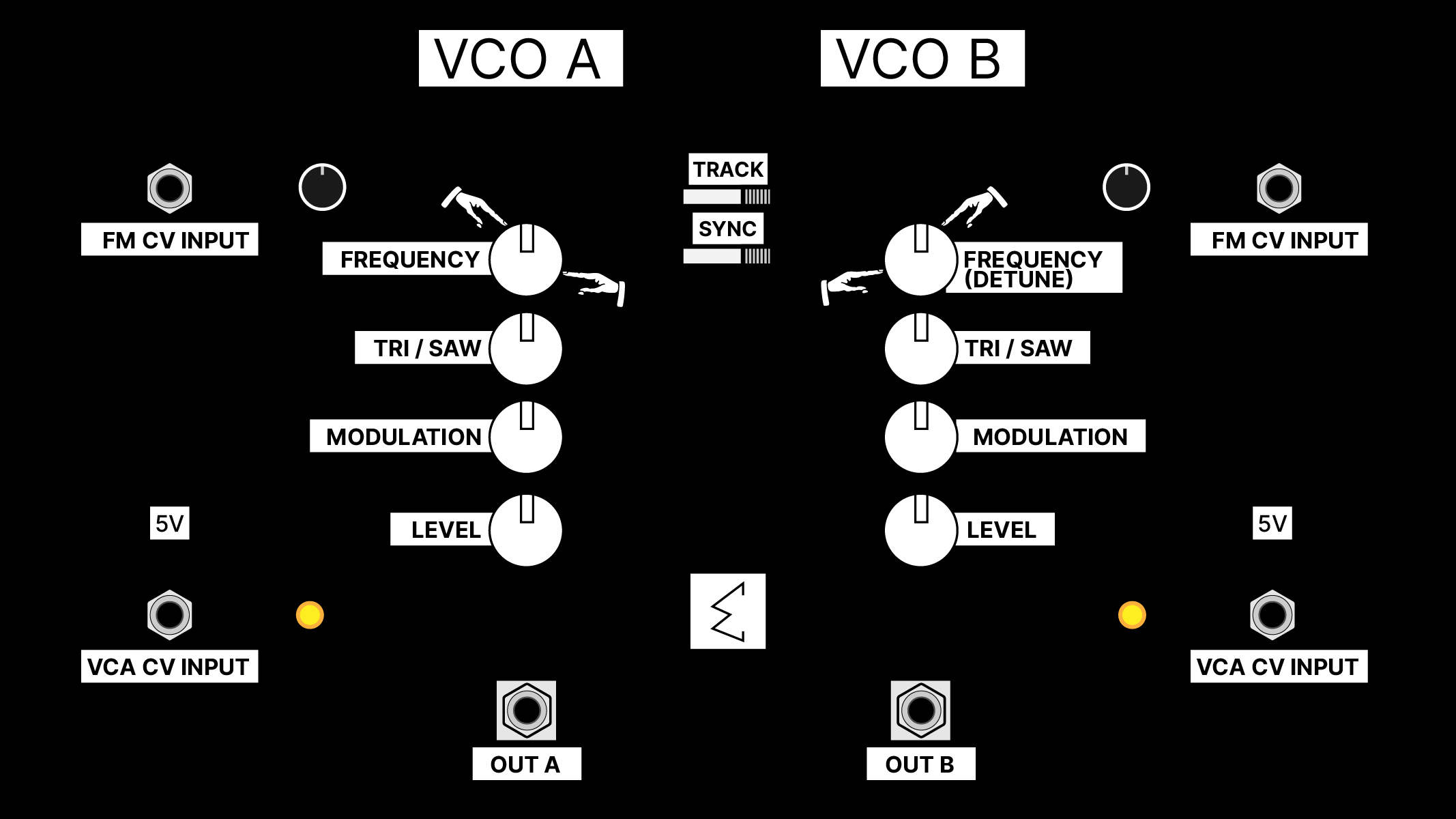

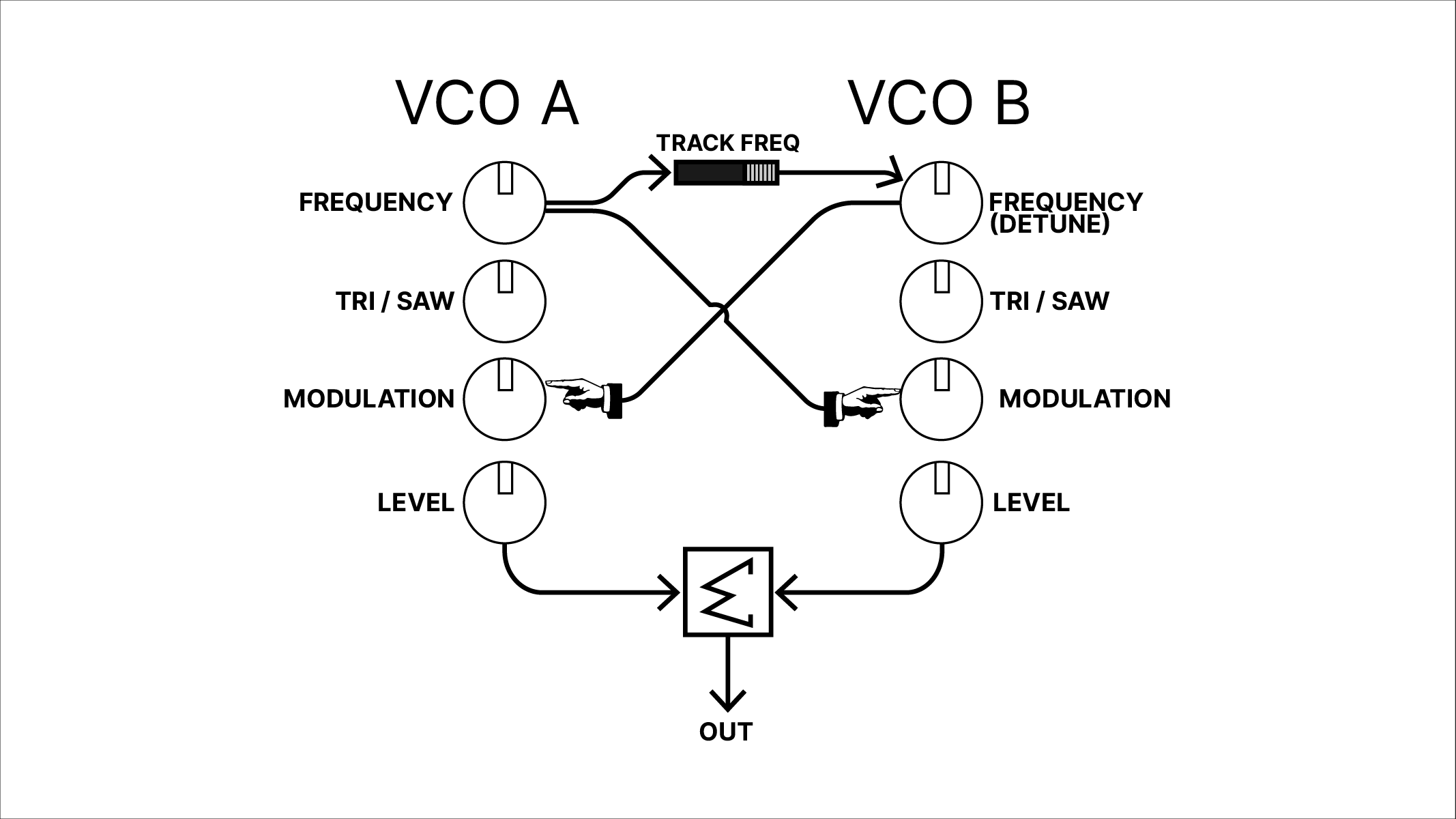

![](images/topology.svg) ![](images/topology.svg)
The Mutu consists of two nearly identical voices. Each of the voices has a VCO (**V**oltage **C**ontrolled **O**scillator) and a VCA (**V**oltage **C**ontrolled **A**mplifier). You can use both voices summed (mixed) together by plugging a cable into the <kbd>OUT B</kbd> only *OR* you can use the voices separately by plugging a cable into both <kbd>OUT A</kbd> *and* <kbd>OUT B</kbd>.
### VCOs
#### The Base Waveform
The VCOs of mutu have an oscillator core that can be morphed between triangle and sawtooth waveforms by turning the <kbd>SHAPE</kbd> knobs. For technical reasons the pitch of the oscillator will go slightly up when turning the knob towards the sawtooth waveform. The triangle wave has less overtones and is good for a low deep bass or organ-like tones. The saw wave has more overtones and is good to produce harsher more energetic sounds.
#### Frequency: The Right Vibrations
The pitch/frequency of the oscillator can be changed and modulated using three different ways (potentially all at once).
First and most simple by turning the <kbd>FREQUENCY</kbd> knob. Second way is to let the waveform of the *other* oscillator influence the waveform of the this one, by turning up the <kbd>MODULATION</kbd> knob. This is where the name of the the synth comes from: the structure of mutual influence between the two VCOs. The third way to modulate the frequency of an VCO is by using an external control signal on the <kbd>FM CV INPUT</kbd>. The amount of this external control signal can be adjusted using the <kbd>FM CV ATTENUATOR</kbd>.
Having both oscillators influence each others is a way to create more noisy sounds. Frequency modulation at high rates will also bend the waveform in weird and complex ways.
The signal present at the external CV input of VCO A is normalized ("copied") to the external CV input of VCO B if no cable is plugged there. This allows you to use one signal to modulate both VCOs in different amounts without using a Y-cable or a stack-cable.
#### Tracking: Controlling both VCOs at once
You can make VCO B follow the frequency of VCO B by turning on the <kbd>Track</kbd> switch. If this option is active. The external FM signal and frequency knob of VCO A will be added to whatever is set up at VCO B. The tracking is not perfect, but hey.
#### Syncing
VCO B can be *hard-synced* to VCO A by turning on the <kbd>SYNC</kbd>switch. What is a hard sync? Wikipedia says:
> As one oscillator finishes a cycle, it resets the period of another oscillator, forcing the latter to have the same base frequency. This can produce a harmonically rich sound, the timbre of which can be altered by varying the synced oscillator's frequency.
This means every time VCO A finishes it's cycle it restarts VCO B which adds another, very different sounding mode to the synth.
### VCAs
The Voltage Controlled Amplifers in the VCA section allow you to change the output volume of each VCO. This section can be used in two ways:
1. Just turn the <kbd>LEVEL</kbd> knob of each voice and dial in the level you want
2. Plug an external control voltage into the <kbd>VCA CV INPUT</kbd> and the <kbd>LEVEL</kbd> knob becomes an attenuator for the incoming signal
A small LED will display the current level of each voice. Internally the VCA uses an electronic element called *vactrol*, these elements react well to short pulses of sound.
## Interface ## Interface
Panel draft with 16 HP (~80 mm wide, 119 mm tall) Panel draft with 16 HP (~80 mm wide, 119 mm tall)
......
