Add Example 8x8 setup (cabled)

parent 90db7df6
......@@ -22,6 +22,10 @@ The 4x4 matrix above consists of:
The modules are designed in a way they can be connected via wires or jumpers to each other, so multiple configurations are possible (e.g. 2x2, 2x4, 4x2, 8x8, 10x6 etc.).

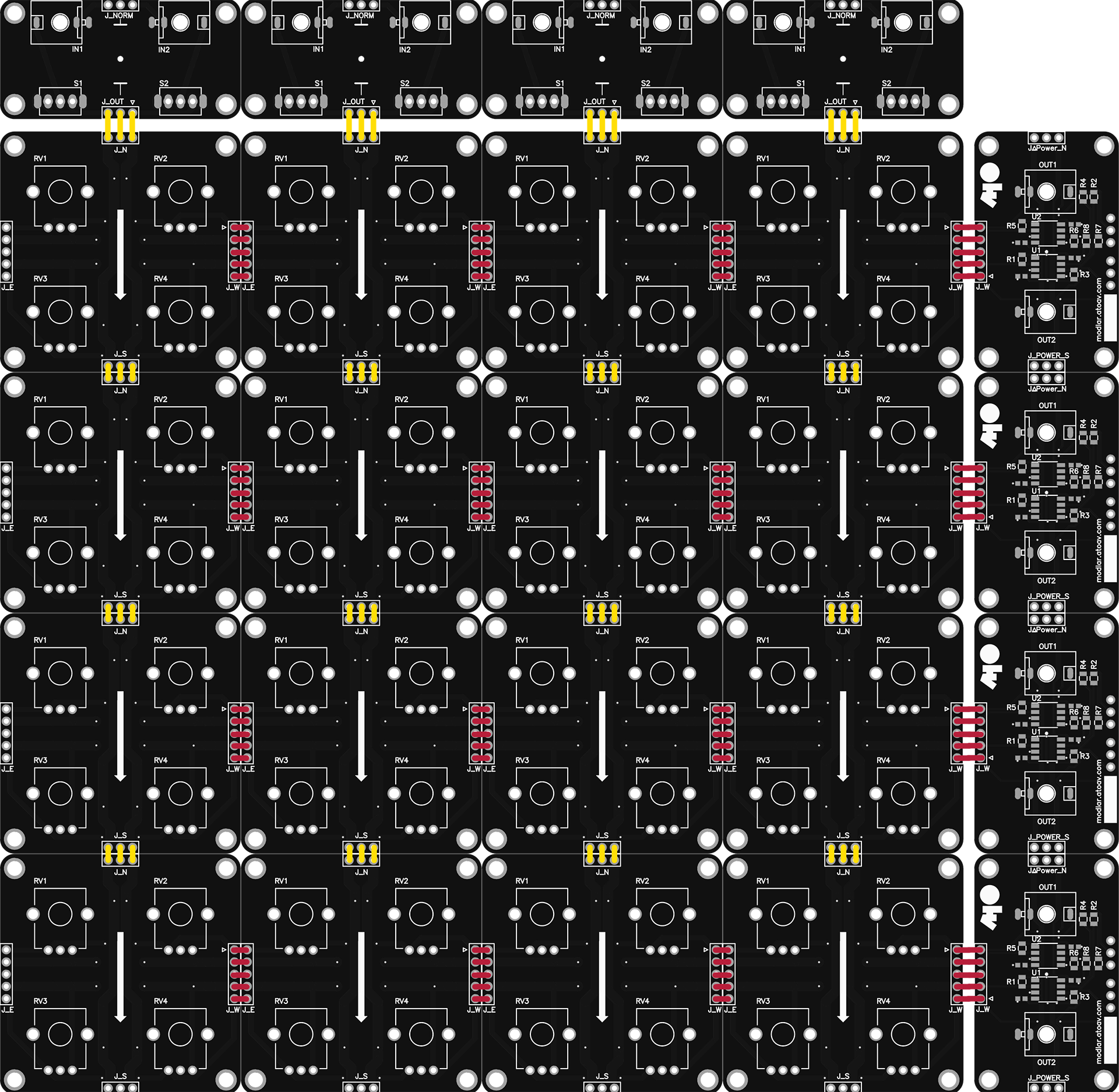

Here an example 8x8 setup consisting of 4 Input modules, 4 Output modules and 16 Tiles:
![Example 8x8 setup consisting of 4 Input modules, 4 Output modules and 16 Tiles](images/8x8_pcbs.png)
## Input Module [MAMI-INPUT]
The Input Module has two 3.5mm Mono Input Jacks and two (On)-Off-On Switches that allows muting individual inputs (or momentarily/permanently switching them on).
......
