# Clockgen

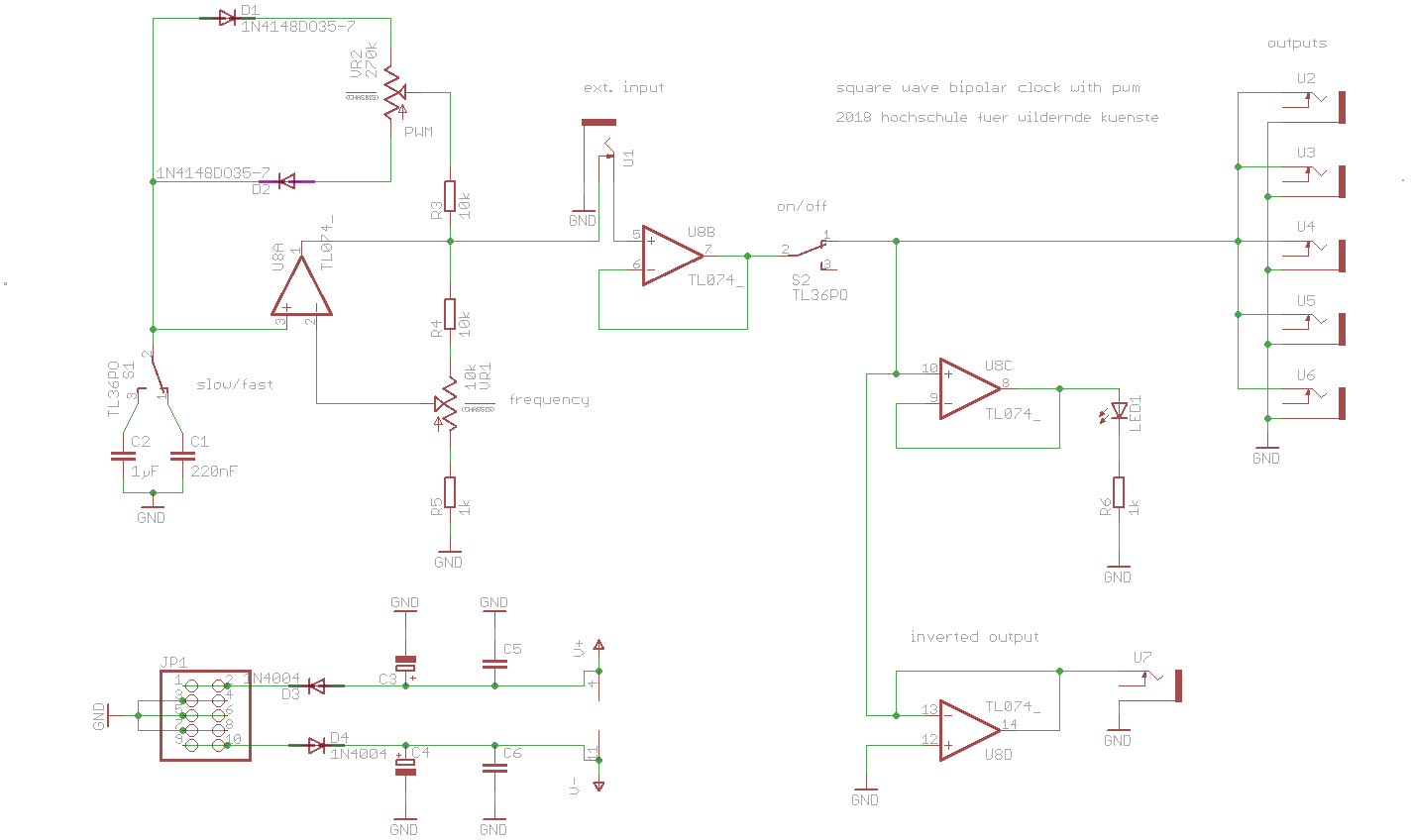

Simple bipolar clock generator with PWM, buffered outputs, one inverted output and two-colour-LED indicating the output signal.
v0.1 20181108
This diff is collapsed.
"Part";"Value";"Device";"Package";"Description";"";
"C1";"220nF";"C-EU025-025X050";"C025-025X050";"CAPACITOR, European symbol";"";
"C2";"1µF";"C-EU025-040X050";"C025-040X050";"CAPACITOR, European symbol";"";
"C3";"";"CPOL-EUE2.5-5";"E2,5-5";"POLARIZED CAPACITOR, European symbol";"";
"C4";"";"CPOL-EUE2.5-5";"E2,5-5";"POLARIZED CAPACITOR, European symbol";"";
"C5";"";"C-EU025-024X044";"C025-024X044";"CAPACITOR, European symbol";"";
"C6";"";"C-EU025-024X044";"C025-024X044";"CAPACITOR, European symbol";"";
"D1";"1N4148DO35-7";"1N4148DO35-7";"DO35-7";"DIODE";"";
"D2";"1N4148DO35-7";"1N4148DO35-7";"DO35-7";"DIODE";"";
"D3";"1N4004";"1N4004";"DO41-10";"DIODE";"";
"D4";"1N4004";"1N4004";"DO41-10";"DIODE";"";
"JP1";"";"PINHD-2X5";"2X05";"PIN HEADER";"";
"LED1";"";"LED3MM";"LED3MM";"LED";"";
"R3";"10k";"R-EU_0204/5";"0204/5";"RESISTOR, European symbol";"";
"R4";"10k";"R-EU_0204/5";"0204/5";"RESISTOR, European symbol";"";
"R5";"1k";"R-EU_0204/5";"0204/5";"RESISTOR, European symbol";"";
"R6";"1k";"R-EU_0204/5";"0204/5";"RESISTOR, European symbol";"";
"S1";"TL36PO";"TL36PO";"TL3XPO";"TINY SWITCH ON - ON";"";
"S2";"TL36PO";"TL36PO";"TL3XPO";"TINY SWITCH ON - ON";"";
"U1";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U2";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U3";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U4";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U5";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U6";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U7";"THONKICONNOLD";"THONKICONNOLD";"THONKICONN";"3.5mm socket for Eurorack modular synths";"";
"U8";"TL074_";"TL074_";"DIL14";"Generic Quad Op Amp";"";
"VR1";"10k";"9MM_SNAP-IN_POT_CHASSIS";"9MM_SNAP-IN_POT";"9mm vertical snap-in pot, Alpha / Panasonic style, with a connection to the metal chassis for grounding";"";
"VR2";"270k";"9MM_SNAP-IN_POT_CHASSIS";"9MM_SNAP-IN_POT";"9mm vertical snap-in pot, Alpha / Panasonic style, with a connection to the metal chassis for grounding";"";
