mediactl
autostart on RPI
See this for a description of how to start chromium via .xinit
note about apt and git
In /etc/apt/apt.conf.d/proxy.conf there is a proxy connection setup:
# "socks5h" means proxy with DNS resolving ability
Acquire {
HTTP::proxy "socks5h://127.0.0.1:8080";
HTTPS::proxy "socks5h://127.0.0.1:8080";
}So we can then ssh into the machine with a tunnel
ssh -R 127.0.0.1:8080 mediactlConnection diagram
| Device | Connection Kind | Purpose | |
|---|---|---|---|
| Allen&Heath AHM16 | Ethernet | Audio DSP and Mixer | TCP Protocol |
| RPI 3B "projctl" | Ethernet/WIFI (REST via mediahell wifi) | Controlling and monitoring the projector | see code.hfbk.net |
| Kramer VS-411X | GPIO and GND | Switching HDMI-Sources, Audio Extractor | GPIO, Pull port to GND |
| Quadro DSP | (USB-Serial) | Poweramp, Check State | Reverse Engineering |
| Sennheiser ewG4 | (Ethernet) | Wireless Mic Receiver, Check State | Manual |
| AC123 Remote | GPIO and GND | Controls Screen motor via Radio (Up/Down/Stop) | GPIO, Pull port to GND to switch |
GPIO Connections
| GPIO PIN | Device | Function | Kind | Color |
|---|---|---|---|---|
| GND (39) | Kramer | GND | GND | Black |
| GPIO 21 | Kramer | Switch to Input 4 | Pull to GND to switch | Brown+Brown/White |
| GPIO 20 | Kramer | Switch to Input 3 | Pull to GND to switch | Blue + Blue/White |
| GPIO 26 | Kramer | Switch to Input 2 | Pull to GND to switch | Orange + Orange/White |
| GPIO 16 | Kramer | Switch to Input 1 | Pull to GND to switch | Green + Green/White |
| GND (34) | AC123 Remote | GND | GND | Black |
| GPIO 13 | AC123 Remote | Screen moves Up | Pull to GND to switch | Green |
| GPIO 6 | AC123 Remote | Screen stops | Pull to GND to switch | White |
| GPIO 5 | AC123 Remote | Screen moves Down | Pull to GND to switch | Red |

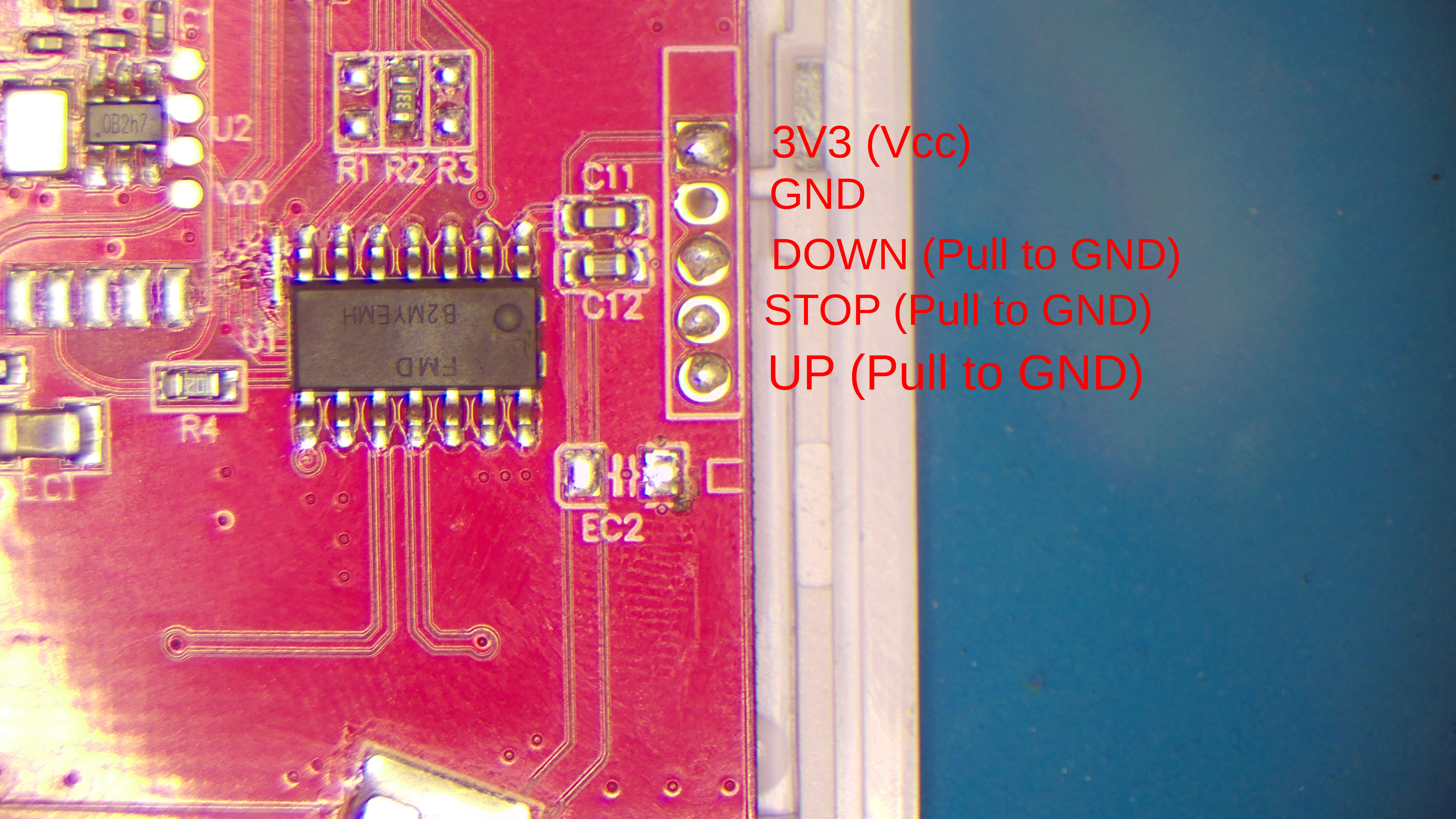

AC123-Remote
